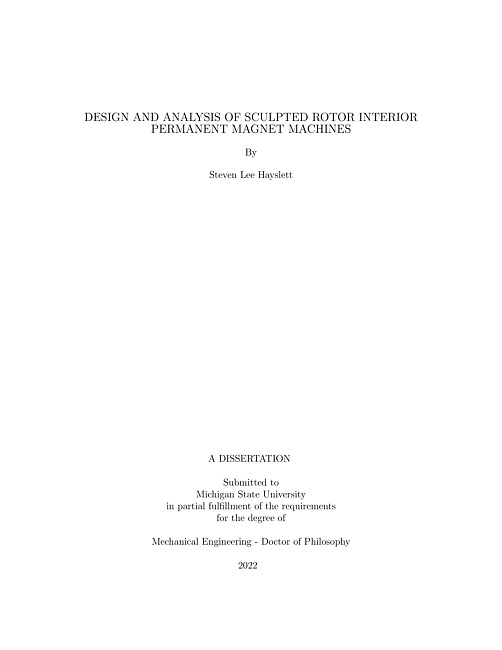

Design and analysis of sculpted rotor interior permanent magnet machines
Design of interior permanent magnet electrical machines is complex. Interior permanent magnet machines offer a good balance of cost, efficiency, and torque/power density. Maximum torque and power production of an interior permanent magnet machine is achieved through balancing design choices related to the permanent magnet and salient features. The embedded magnet within the salient structure of the rotor lamination results in an increase in harmonic content. In addition, interaction of the armature, control angle, and rotor reluctance structure creates additional harmonic content. These harmonics result in increased torque ripple, radial forces, losses, and other unwanted phenomena. Further improvements in torque and power density, and techniques to minimize harmonics, are necessary. Typical interior permanent magnet machine design results at the maximum torque per amp condition are at neither the maximum magnet nor maximum salient torque, but at the best combination of the two. The use of rotor surface features to align the magnet and the reluctance axis allows for improvement of torque and power density. Reduction of flux and torque harmonics is also possible through careful design of rotor sculpt features that are included at or near the surface of the rotor. Finite element models provide high fidelity and accurate results to machine performance but do not give insight into the relationship between design parameters and performance. Winding factor models describe the machine with a set of Fourier series equations, providing access to the harmonic information of both parameters and performance. Direct knowledge of this information provides better insight, a clear understanding of interactions, and the ability to develop a more efficient design process. A new analytical winding function model of the single-V IPM machine is introduced, which considers the sculpted rotor and how this model can be used in the design approach of machines. Rotor feature trends are established and utilized to increase design intuition and reduce dependency upon the lengthy design of experiment optimization processes. The shape and placement of the rotor features, derived from the optimization process, show the improvement in torque average and torque ripple of the IPM machine.
