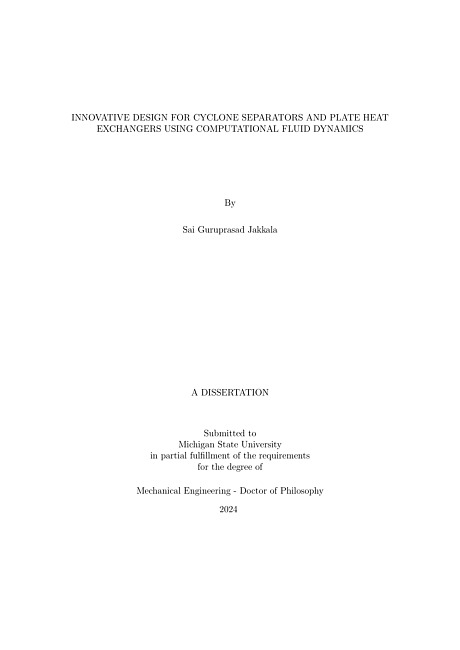

Innovative Design for Cyclone Separators and Plate Heat Exchangers using Computational Fluid Dynamics
-
-
- Email us at repoteam@lib.msu.edu
- Report accessibility issue
A majority of equipment used in industry operate in the turbulent flow regime. Design of these equipment requires many iterations, often performed using computer simulations. Turbulence modelling is computationally expensive and time-consuming. In this study we investigate different turbulence models and their application in designing cyclone separators and novel plate heat exchangers. The performance of the various models are studied and the simulations are used to provide insight and guidance on the redesign of these two important systems. Cyclone separators and heat exchangers are ubiquitous in industry. A good understanding of the flow features in cyclone separators is paramount to efficiently use them. The turbulent fluid flow characteristics are modeled using Unsteady Reynolds Averaged Navier-Stokes (URANS), Large Eddy Simulations (LES), and hybrid LES/RANS turbulent models. The hybrid LES/RANS approaches, namely, detached eddy simulation (DES), delayed detached eddy simulation (DDES), and improved delayed detached eddy simulation (IDDES) based on the k-omega SST RANS approaches are explored. The study is carried out for three different inlet velocities. The results from hybrid LES/RANS models are shown to be in good agreement with the experimental data available in the literature. Reduction in computational time and mesh size are the two main benefits of using hybrid LES/RANS models over the traditional LES methods. The Reynolds stresses are observed to understand the redistribution of turbulent energy in the flow field. The velocity profiles and vorticity quantities are explored to obtain a better understanding of the behavior of fluid flow in cyclone separators. The better prediction of turbulent quantities from the hybrid models can help in better modeling the multiphase interactions. Using the improved turbulent quantity predictions, we are able to design a cyclone separator for reduced erosion. Supercritical CO2 cycles operating with high efficiency require new heat exchangers which can operate at high temperature (above 800C) and high pressure (above 80 bar) with tens of thousands of hours of operation. In this thesis, we discuss modified metallic plate heat exchangers which can withstand high temperature and high pressure with new twisted S-shaped fins. Novel 3D twisted S-shaped fins are developed for better heat exchanger performance. The fins have a twist to induce a swirl in the flow resulting in enhanced heat transfer. Ni-based superalloy Haynes 214 is the material used for the heat exchanger plates and fins. The heat exchanger is manufactured using additive manufacturing processes. Turbulent Conjugate Heat Transfer simulations are carried out to obtain the temperature and pressure profiles in the heat exchanger in the turbulent regime. A parametric study is conducted to determine the performance of the newly developed 3D twisted S-shaped fins. The CFD results are compared with experiments.The studies in this thesis resulted in an improved cyclone separator design which has improved operating life due to reduced erosion (maximum of 90%) without much compromise on the efficiency. 3D twisted S-shaped fins provide a better Performance Efficient Coefficient (PEC) than S-shaped fins. There is an improvement of 10%-13% better performance. There is considerable reduction (up to 75%) in the pumping requirement for 3D twisted S-shaped fins.
Read
- In Collections
-
Electronic Theses & Dissertations
- Copyright Status
- Attribution-ShareAlike 4.0 International
- Material Type
-
Theses
- Authors
-
Jakkala, Sai Guruprasad
- Thesis Advisors
-
Benard, Andre
Vengadesan, S.
- Committee Members
-
Jaberi, Farhad
Chung, Haseung
Liao, Wei
- Date Published
-
2024
- Subjects
-
Mechanical engineering
- Program of Study
-
Mechanical Engineering - Doctor of Philosophy
- Degree Level
-
Doctoral
- Language
-
English
- Pages
- 99 pages
- Embargo End Date
-
August 8th, 2025
- Permalink
- https://doi.org/doi:10.25335/40yh-zz90
This item is not available to view or download until August 8th, 2025. To request a copy, contact ill@lib.msu.edu.
