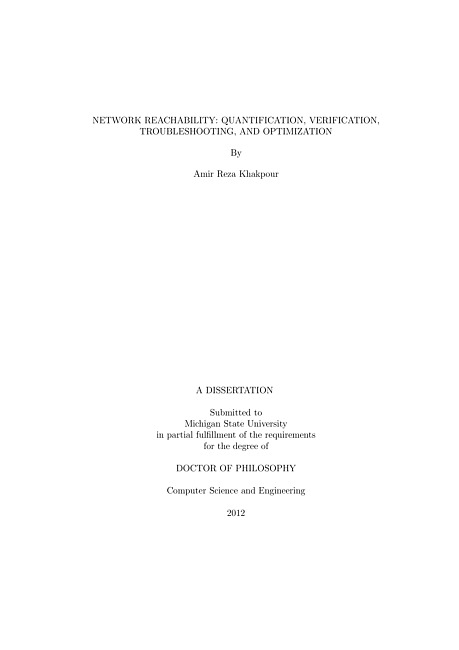

Quantifying, verifying, troubleshooting, and optimizing the network reachability is essential for network management and network security monitoring as well as various aspects of network auditing, maintenance, and design. Although attempts to model network reachability have been made, feasible solutions for computing, maintaining and optimally designing network reachability have remained unknown. Network reachability control is very critical because, on one hand, reachability errors can cause network security breaches or service outages, leading to millions of dollars of revenue loss for an enterprise network. On the other hand, network operators suffer from lack of tools that thoroughly examine network access control configurations and audit them to avoid such errors. Besides, finding reachability errors is by no means easy. The access control rules, by which network reachability is restricted, are often very complex and manually troubleshooting them is extremely difficult. Hence, having a tool that finds the reachability errors and fix them automatically can be very useful. Furthermore, flawed network reachability design and deployment can degrade the network performance significantly. Thus, it is crucial to have a tool that designs the network configurations such that they have the least performance impact on the enterprise network.In this dissertation, we first present a network reachability model that considers connectionless and connection-oriented transport protocols, stateless and stateful routers/firewalls, static and dynamic NAT, PAT, IP tunneling, etc. We then propose a suite of algorithms for quantifying reachability based on network configurations (mainly access control lists (ACLs)) as well as solutions for querying network reachability. We further extend our algorithms and data structures for detecting reachability errors, pinpointing faulty access control lists, and fixing them automatically and efficiently. Finally, we propose algorithms to place rules on network devices optimally so that they satisfy the networks central access policies. To this end, we define correctness and performance criteria for rule placement and in turn propose cost-based algorithms with adjustable parameters (for the network operators) to place rules such that the correctness and performance criteria are satisfied.We implemented the algorithms in our network reachability tool called Quarnet and conducted experiments on a university network. Experimental results show that the offline computation of reachability matrices takes a few hours and the online processing of a reachability query takes 75 milliseconds on average. We also examine our reachability error detection and correction algorithms on a few real-life networks to examine their performance and ensure that Quarnet is efficient enough to be practically useful. The results indicate that we can find reachability errors in order of minutes and fix them in order of seconds depending on the size of network and number of ACLs. Finally, we added the rule placement suite of algorithms to Quarnet, which can design a network ACL in based on the network central policies in order of tens of minutes for an enterprise network. We compare it with Purdue ACL placement, the state-of-the-art access policy design technique, and explain its pros and cons.
